Exploring Virtual Machine Live Migration: Performance Analysis and Optimization

Live Migration

Live Migration is a crucial feature in virtualization technology that allows the transfer of a running virtual machine (VM) from one physical host to another without interrupting the VM's operation or services.

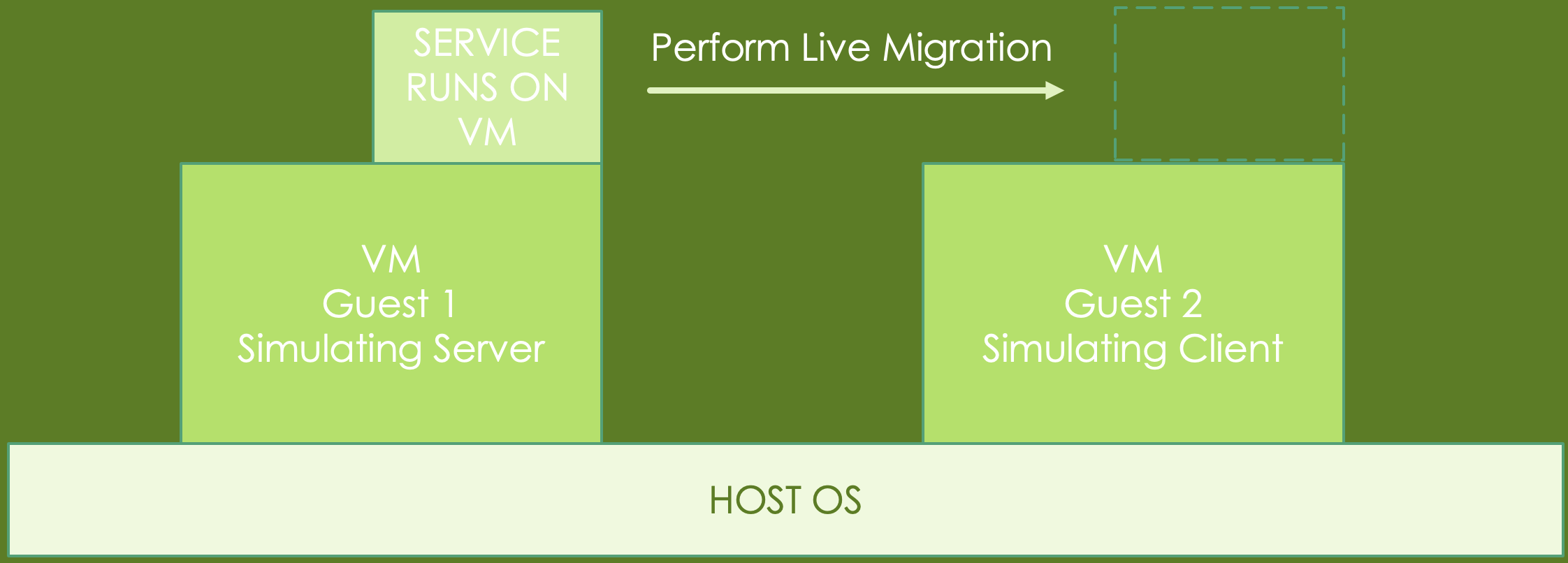

The architecture we want to simulate:

Our Homework Architecture:

Since not everyone will have 2 PCs available to run QEMU on them, we provided an alternative option:

Note: VirtualBox now has native Apple Silicon support on Apple hardware with M-Series chips, but we haven't yet tested the nested virtualization feature, so this homework may not work out on your hardware by default.
If you still want to test that out, feel free to ask us through the discussion/email on eeclass.
Or you can use the PC room in C.L.Liu(EECS) 3F, we already have VirtualBox installed in there.

Setup Environment

Prerequisites

We strongly suggests that your computer have at least 8GB of RAM and 30GB+ of storage space.
First, use a hypervisor software to create two virtual machines on your computer.

If you’re using Linux : QEMU is recommended.
If you’re using Windows or MacOS : VMWare Workstation or VMWare Fusion are recommended.

The download link for VMware's software can be elusive, so you might need to put in some effort to locate it.

Next, go to download Ubuntu-24.04 desktop version as your Guest OS. It’s about 5.9G. You can grab it from here: download link
Search for detailed installation guide if you don't know how to install Ubuntu yet.

VMWare Workstation

1. Assuming you've downloaded the VMWare Workstation installer and Ubuntu image file.

2. Install the VMWare Workstation.

3. Click "Create a New Virtual Machine" and proceed with the creation process.

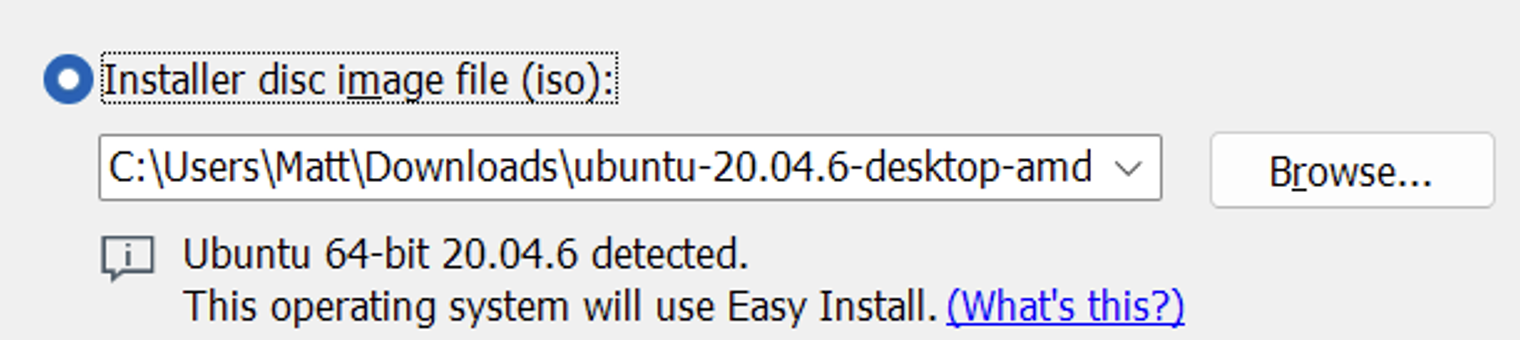

4. Use the Ubuntu image you've already downloaded. (Use the version you downloaded, not 20.04 in the image)

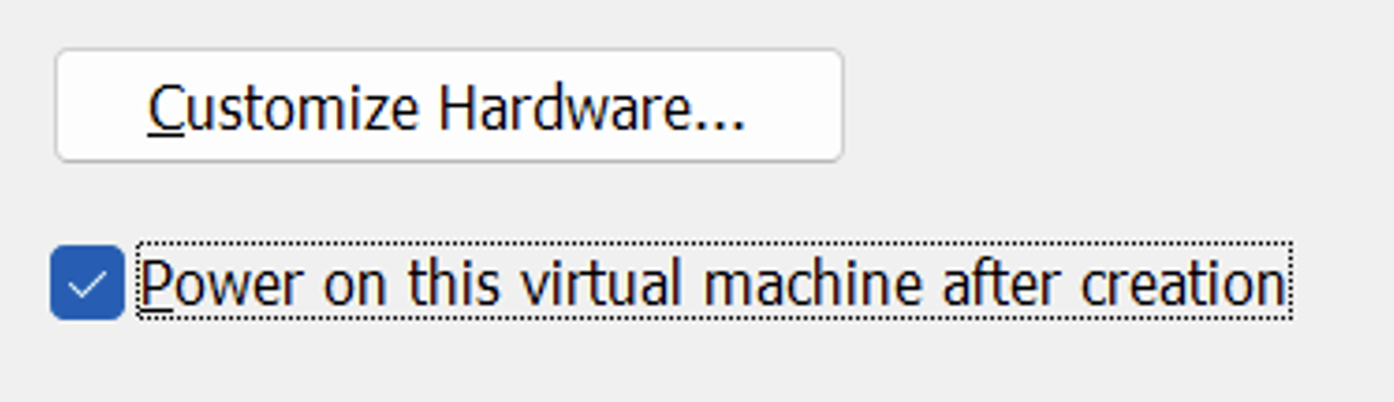

5. Click "Customize Hardware..."

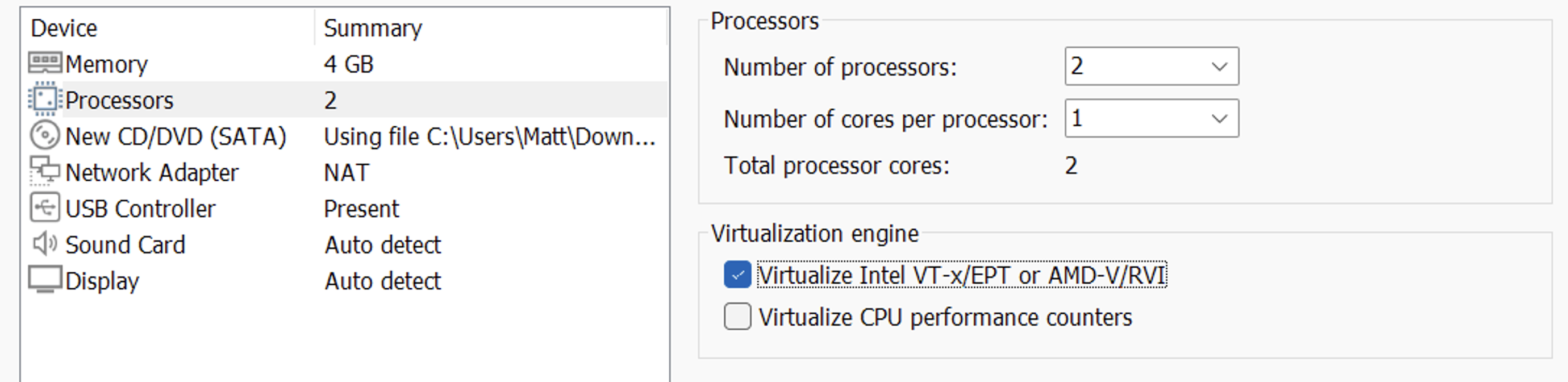

6. Go to "Processors" tab and enable "Virtualize Intel VT-x/EPT or AMD-V/RVI".

7. Repeat the above steps to create a second virtual machine.

8. Boot each virtual machine and complete the Ubuntu installation process.

VirtualBox

Using VirtualBox is similar to using VMWare Workstation, but you need to enable nested virtualization.

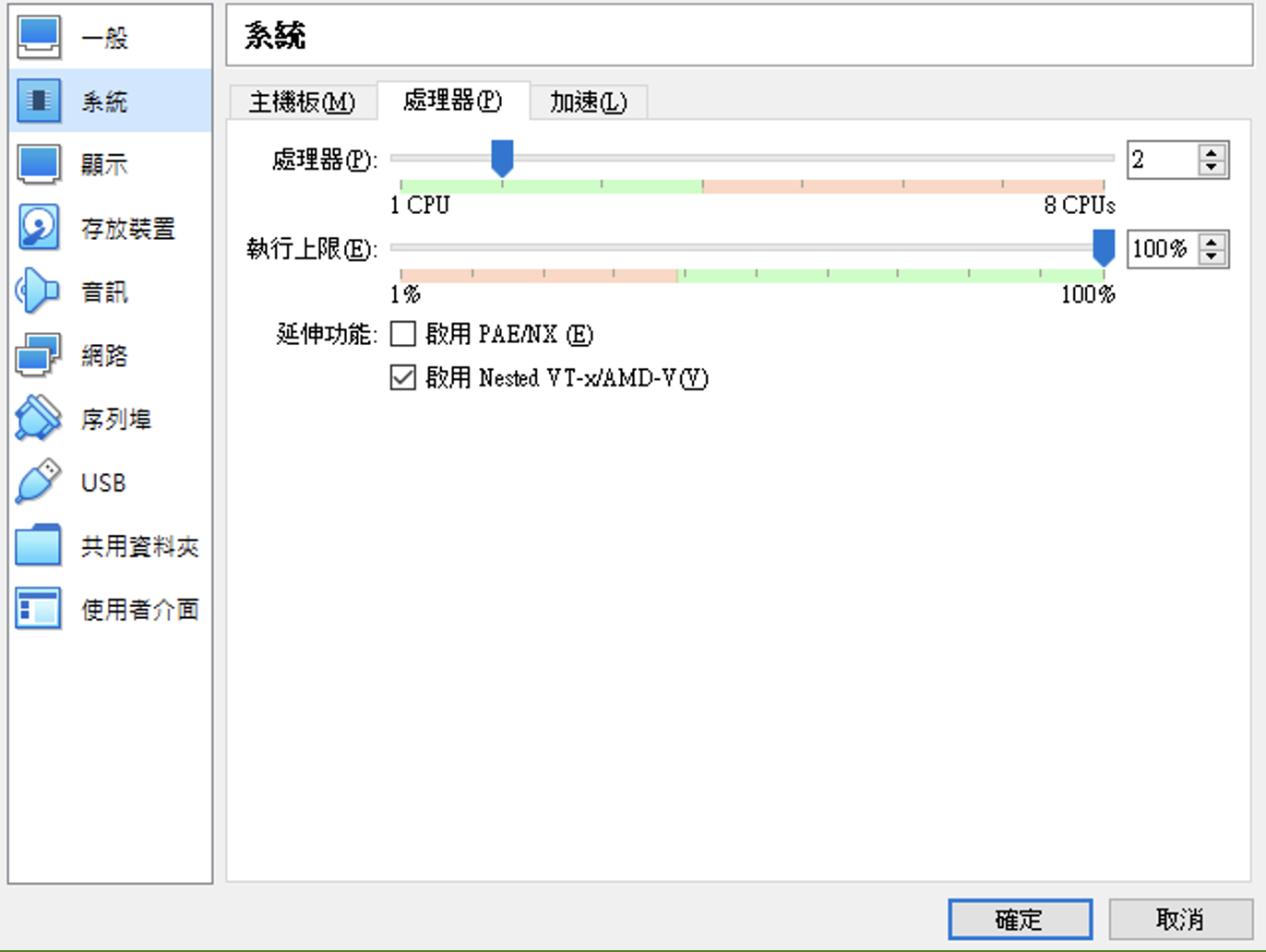

Use GUI to enable Nested Virtualization

Use Command Line to Enable Nested Virtualization

Go to the directory of the VirtualBox you installed.
Open Command Prompt right in the place.
Enter the command below to enable nested virtualization:
```
.\VBoxManage.exe modifyvm "VM Name" --nested-hw-virt on
```
Replace "VM Name" with the name of your virtual machine.

QEMU

0. Before starting, setup a bridge `br0` for QEMU to bind to: (will be cleaned up naturally after a reboot)

Choose a subnet/IP that does not conflict with your usecase. For CIDR notation, see here.

sudo ip link add br0 type bridge
sudo ip addr add 192.168.50.1/24 dev br0
sudo ip link set br0 up

After running the command above, you can inspect your current network settings:

ip a

Add a configuration file to enable qemu to automatically pick up your bridge configured above:

sudo su
mkdir -p /etc/qemu
echo "allow br0" >> /etc/qemu/bridge.conf

1. First, create the disk image for `guest1`.

qemu-img create -f qcow2 guest1.qcow2 20G

2. Run `guest1` and complete the Ubuntu installation process.

sudo qemu-system-x86_64 -cpu host -enable-kvm -m 4G -smp 1 \
    -drive if=virtio,format=qcow2,file=guest1.qcow2 \
    -nic bridge,br=br0,model=virtio-net-pci,mac=52:54:00:40:C9:01 \
    -boot d -cdrom <your_ubuntu_img_file_path>.iso \
    -vnc :1,password=on -monitor stdio

In qemu console, type the following command to change the vnc password to the one you know:

(qemu) change vnc password

After changing the password to the one you know, use any VNC viewer (e.g. : RealVNC, vncviewer) connect to (Your host IP):5901 (e.g. : 192.168.7.102:5901 or 127.0.0.1:5901), and complete the installation process.
After Ubuntu installation is complete, remove the -boot d -cdrom <your_img_file_path>.iso part from the above command and run guest1 again.

3. Repeat the same steps for `guest2`

qemu-img create -f qcow2 guest2.qcow2 20G
sudo qemu-system-x86_64 -cpu host -enable-kvm -m 4G -smp 1 \
    -drive if=virtio,format=qcow2,file=guest2.qcow2 \
    -nic bridge,br=br0,model=virtio-net-pci,mac=52:54:00:40:C9:02 \
    -boot d -cdrom <your_ubuntu_img_file_path>.iso \
    -vnc :1,password=on -monitor stdio

In qemu console, type the following command to change the vnc password to the one you know:

(qemu) change vnc password

Using any VNC viewer (e.g. : RealVNC, vncviewer) connect to (Your host IP):5902 (e.g. : 192.168.7.102:5902 or 127.0.0.1:5902), and complete the installation process.
After Ubuntu installation is complete, remove the -boot d -cdrom <your_img_file_path>.iso part from the above command and run guest2 again.

Live Migration

In this section, you need to demonstrate the above steps of the presentation through a screen recording, showing how you perform live migration on VMs using the framework we provided.

For more information, refer to the Assignment section.

Task 1: Setting up guest1

1. Enter the following command into the terminal:

sudo apt update -y
sudo apt install -y vim qemu-kvm nfs-kernel-server net-tools

2. Before launching QEMU on the first guest VM, obtain the IP address of this VM.

ip a

For example:

3. Create a QEMU image file:

qemu-img create -f qcow2 ubuntu.qcow2 10G

4. Create a new directory in `/mnt` and modify its ownership and permissions:

sudo mkdir -p /mnt/nfs
sudo chown nobody:nogroup /mnt/nfs
sudo chmod 777 /mnt/nfs

5. Move the QEMU image file you just created into the new directory:

mv ubuntu.qcow2 /mnt/nfs

6. Edit the file at `/etc/exports` with superuser privileges:

sudo vim /etc/exports

7. Add the following line to the end of the exports file and save it:

/mnt/nfs *(rw,sync,no_subtree_check,no_root_squash)

8. Return to the terminal and enter this command to update the exports file:

sudo exportfs -arv

9. Launch QEMU to simulate a running process on the virtual machine:

sudo qemu-system-x86_64 \
    -cpu host -enable-kvm -m 2G -smp 1 \
    -drive if=virtio,format=qcow2,file=/mnt/nfs/ubuntu.qcow2 \
    -monitor telnet:127.0.0.1:5500,server,nowait

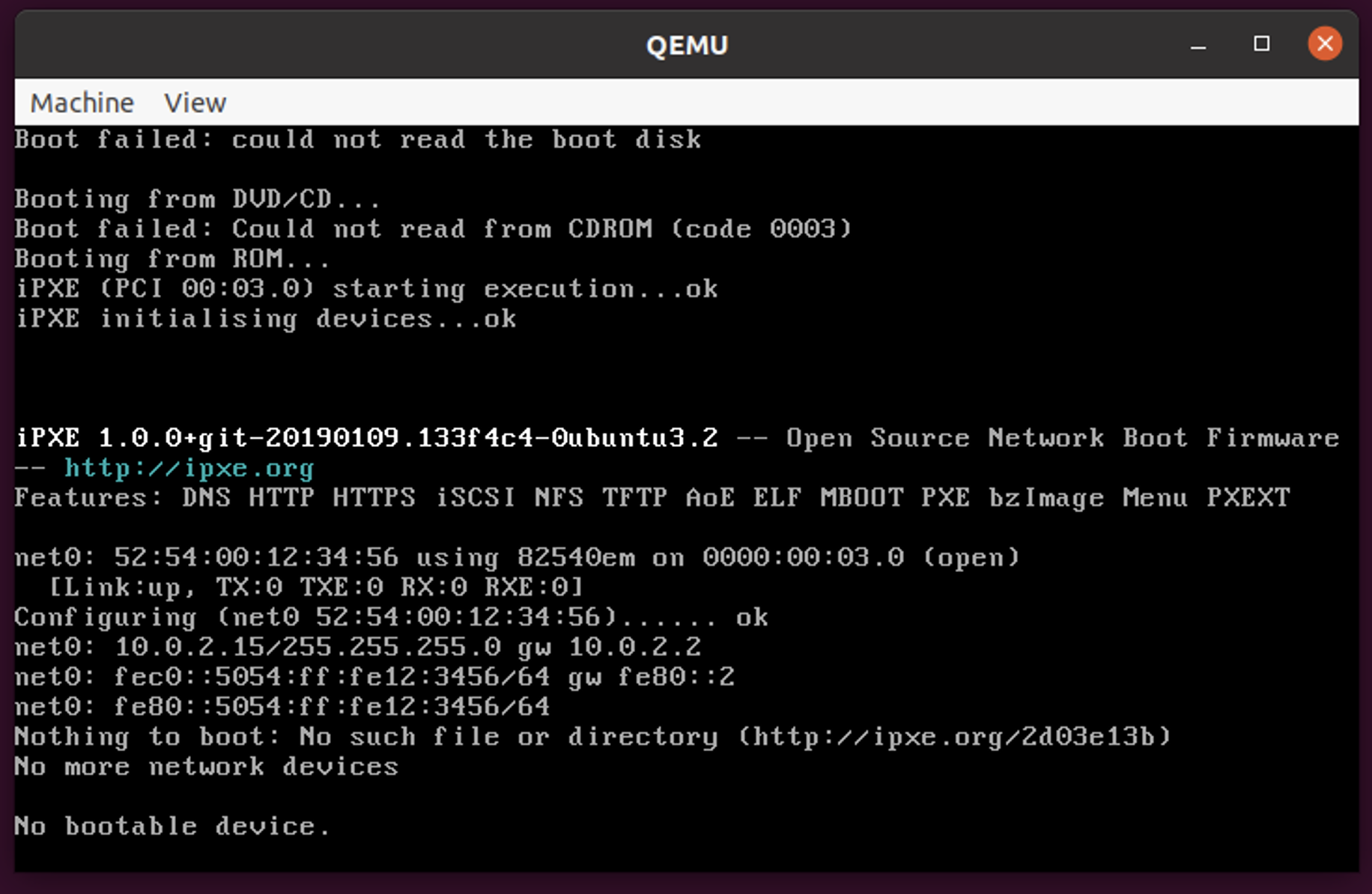

A window similar to this will then appear:

Task 2: Setting up guest2

1. Enter the following commands into the terminal:

sudo apt update -y
sudo apt install -y qemu-kvm net-tools nfs-common

2. Before launching QEMU on the second guest VM, obtain the IP address of this VM.

ip a

3. Enter the following commands into the terminal to mount NFS service:

sudo mkdir -p /mnt/nfs
sudo mount -t nfs <replace_with_guest1_ip>:/mnt/nfs /mnt/nfs>

4. Luanch QEMU on the second VM to prepare for the incoming live virtual machine migration:

sudo qemu-system-x86_64 \
    -cpu host -enable-kvm -m 2G -smp 1 \
    -drive if=virtio,format=qcow2,file=/mnt/nfs/ubuntu.qcow2 \
    -incoming tcp:0:4400

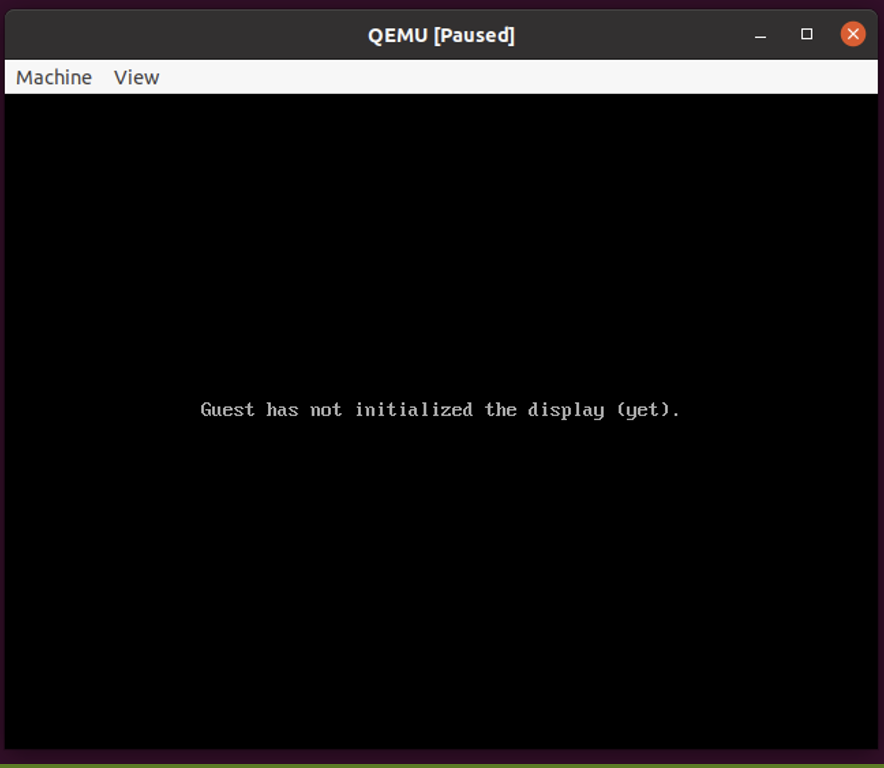

A window similar to this will then appear:

Task 3: Migrate from guest1 to guest2

1. Return the first guest VM, open a new terminal tab, and enter the following command:

telnet 127.0.0.1 5500

2. Upon the new command prompt, issue the following command to initiate the live migration process:

migrate -d tcp:<replace_with_guest2_ip>:4400

3. Show the migration info:

info migrate

4. The screen of the QEMU window on `guest2` should now appear as follows:

This indicates that you've successfully completed the live migration of the virtual machine.

Assignment

Requirements

1. Demo (40 points)

You need to demonstrate the above steps of the presentation through a screen recording, showing how you perform live migration on VMs using the framework we provided.
(only the live migration part is required, including the process of setting up 2 guests, but not the installation process)
Naming the record video file as HW1_<your_student_id>.xxx, e.g. HW1_113062566.mov or HW1_113062566.mp4.
The length of this video should not exceed 30 minutes.
Upload the video to a cloud storage service and provide a link with viewing permission.
- This can be done using YouTube, Google Drive, Dropbox, or any other similar service.
Example:

2. Report (60 points)

You have to make a report of pdf format named HW1_<your_student_id>.pdf, e.g. HW1_113062566.pdf.
The report should include the following items:
- A. Provide a detailed explanation of each instruction, including the purpose of individual arguments within the commands. (5 points)
- B. Show the performance testing results by perf with and without -enable-kvm on VM; furthermore compare among them and simply explain the results (10 points)
- C. Show the performance testing results by iperf with and without virtio on VM; furthermore compare among them and explain the results (10 points)
- D. Show the performance measurements by perf and iperf during the live migration is progressing; furthermore, simply describe your observations. (10 points)
- E. What is "live migration" and why we need it. (10 points)
- F. QEMU has a "fault tolerance" feature called COLO. We don’t ask you to utilize this feature in this assignment, but some questions you may answer :
  - What is fault-tolerance in virtualization technology and why we require it? (7.5 points)
  - What are the relationships between live migration and fault-tolerance? (7.5 points)

Submission

Submit both the demo video link and the report to eeclass.

Deadline

The deadline is set for October 26, 2025 23:59. Late submission is not allowed.

If you have any question, feel free to asking through eeclass or email.

Containerized Socket Communication: Using Docker and Kubernetes

This assignment has two phases:

The first phase requires you to explore how to use Docker.
The second phase is to create services using Kubernetes. Each phase has several tasks.

Setup Environment

Prequisite

We have provided the required files for this assignment. Please download them from here.

The required files are as follows (included within the downloaded hw2.zip):

docker
  |-- server
  |     |-- Dockerfile
  |     |-- socket_server
  |     |-- socket_server_arm
  |
  |-- client
        |-- Dockerfile
        |-- socket_client.c

k8s
  |-- deployment.yaml
  |-- service.yaml

In addition, you must install the following programs on your computer:

Docker: A tool that is used to automate the deployment of applications.
Minikube: Local Kubernetes, focusing on making it easy to learn for Kubernetes.
Kubectl: Command line tool for communicating with a control plane.

There are different installation processes dependending on your operating system. You must have root permissions in your system.

Docker

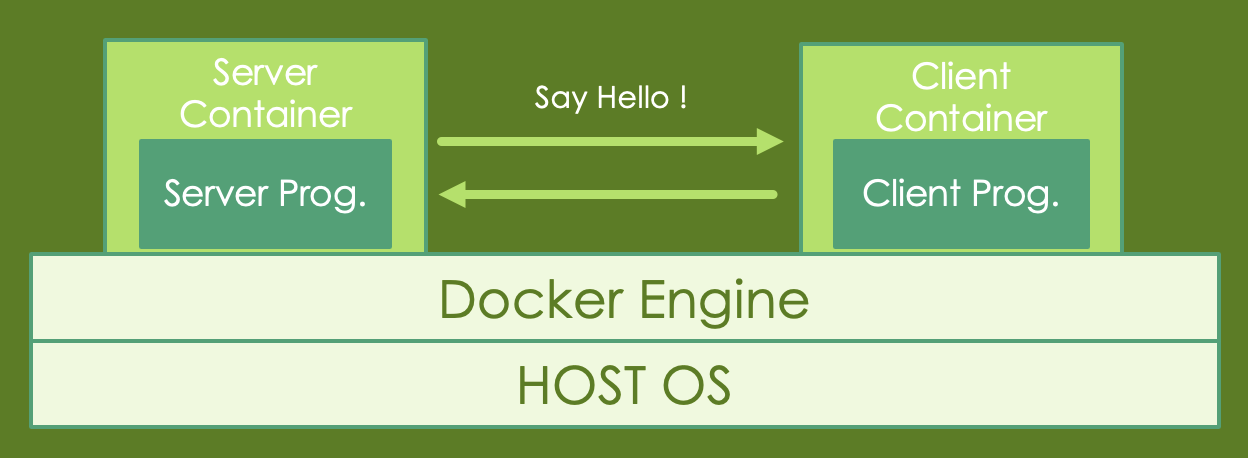

In this task, you are required to create two Docker containers. One container runs the server, and the other container runs the client, allowing the client to communicate with the server and transmit messages.

Once you have installed Docker and downloaded the required files, you can proceed with the following steps.

Note: In this section, you are required to take screenshots of the command output to include in your report when you see something like this:

Note: You need to include the screenshot of the command output above in your report. (5 points)

Task 1: Building the images

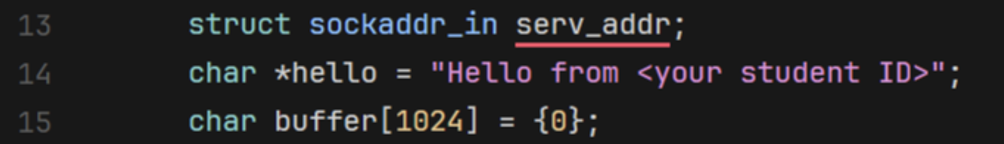

1. Enter the client folder, open and modify the `PLEASE ASSIGN` section in `socket_client.c` as shown in the following image:

2. Build the image with the Dockerfile

If you're on arm64 architecture (e.g., Apple M1/M2), you'll have to modify the Dockerfile to use socket_server_arm instead.

cd path/to/server
docker build -t server-<your_student_id>
cd path/to/client
docker build -t client-<your_student_id>

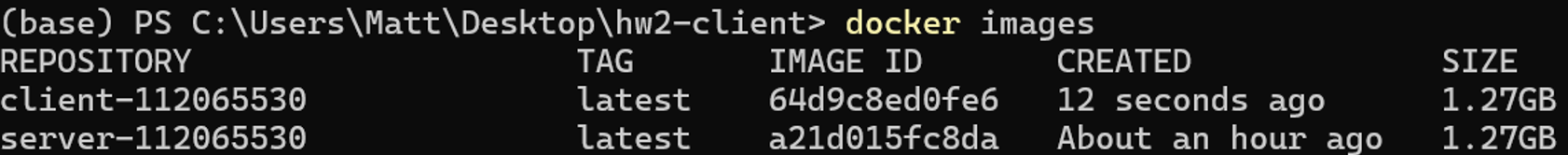

You can use the following command to check images you've built:

docker images

You need to submit the screenshot of the list of your images. (5 points)

3. Launch the server container first, and then launch the client container:

docker run -it --rm --network host \
    --name server \
    server-<your_student_id>
docker run -it --rm --network host \
    --name client \
    client-<your_student_id>

The command docker run will create the container instance with the image and execute the container.

You need to submit the screenshot of the output of the server and client containers. (5 points)

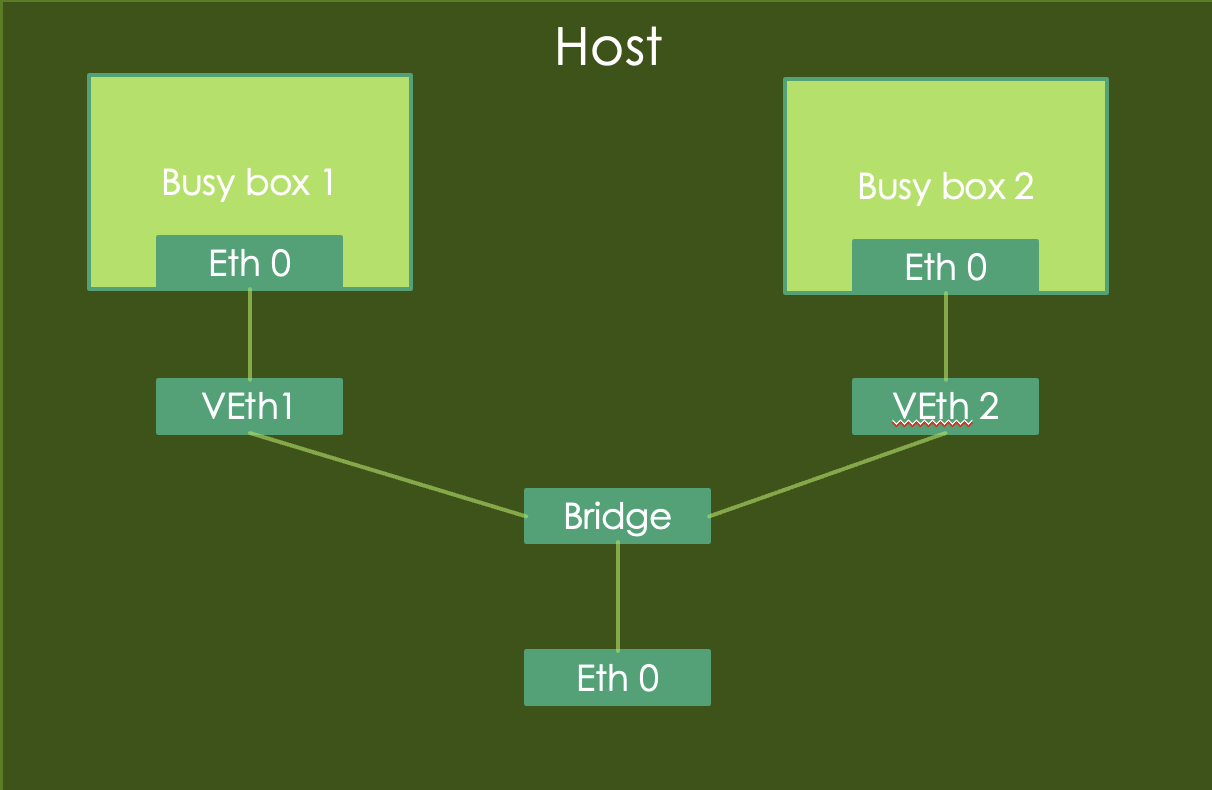

Task 2: Creating bridge

1. Create 2 containers using the following commands:

docker container run -d --rm --name box1 busybox /bin/sh -c "while true; do sleep 3600; done“

docker container run -d --rm --name box2 busybox /bin/sh -c "while true; do sleep 3600; done"

2. Create a network bridge:

docker network create box-bridge

3. Connecting two running containers to the network bridge:

docker network connect box-bridge box1
docker network connect box-bridge box2

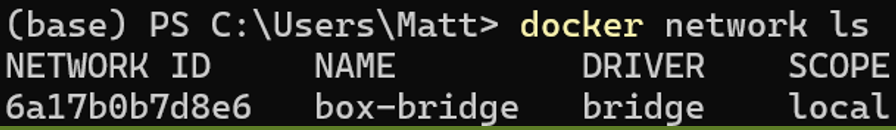

4. You can use the following command to list docker networks:

docker network ls

Note: You need to include the screenshot of the command output above in your report. (5 points)

5. You can inspect more about the details of the `box-bridge` network:

docker network inspect box-bridge

Note: You need to include the screenshot of the command output above in your report. Points WILL BE DEDUCTED if any output text get cropped out. (5 points)

6. Log into `box1` and try to ping `box2`:

docker exec -it box1 sh
ping box2

Note: You need to include the screenshot of the command output above in your report. (5 points)

Task 3: Creating volume

Note: 1 and 2 are independent steps. Make sure you include the following into your report:

Briefly describe how you did it, and use screenshots to assist your explanation. (10 points)
What's the difference between these two steps? (5 points)

3. Answer the following questions: (20 points)

Please explain the difference between Docker Container and Virtual Machine. *(10 points)
Docker is more unsafe than virtual machine, please explain why and what's causing this issue. (10 points)

Kubernetes

Description

In this task, you're required to create services using Kubernetes. We will use the image files from the previous phase to build our services and use the client container to communicate with the services.

You need to figure out the following concept in the process:

The relation between Deployment, Replica Set and Pod.
How pod management works in Kubernetes.
How to expose an application with the Service.
The difference between ClusterIP, NodePort, and LoadBalancer.

Once you have:

installed Docker
installed Minikube
installed Kubectl（Check the version to verify if it's installed)
and downloaded the required files

you can proceed with the following steps.

Task 1: Launching K8s and deploy our containers

Launch your Kubernetes cluster

1. Start the Kubernetes cluster

minikube start

2. Get the instructions to point your docker client to point to the minikube docker daemon

minikube docker-env

3. Check the status of your minikube deployment

minikube status

Deploy the containers into the cluster

1. Enter the k8s folder and input the following command:

kubectl apply -f deployment.yaml
kubectl apply -f service.yaml

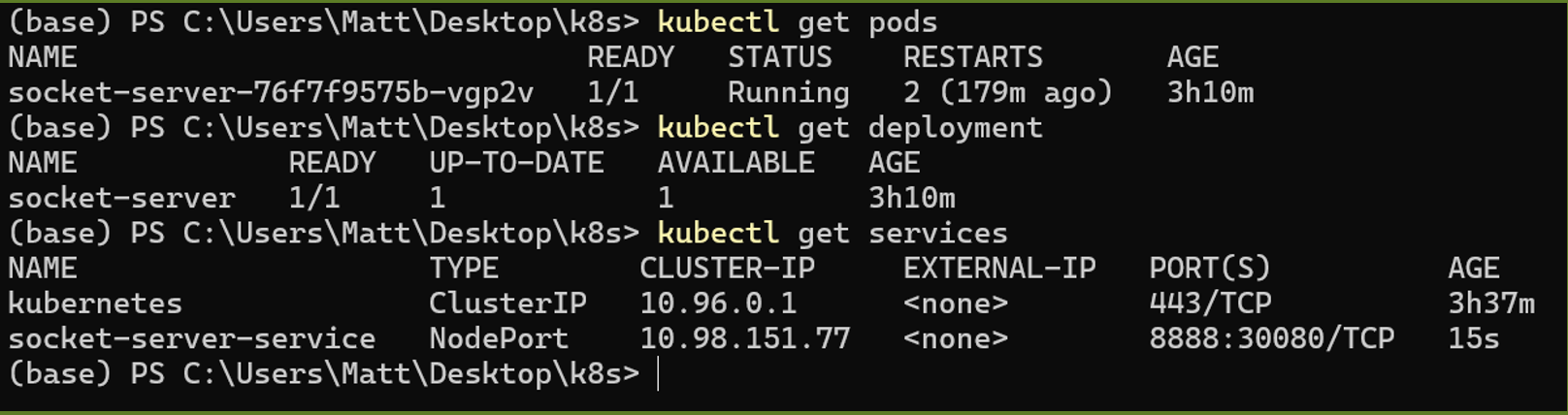

2. Check the status of your deployment

kubectl get pods
kubectl get deployment
kubectl get services

Note: You need to include the screenshot of the command output above in your report. (10 points)

3. Answer the following questions and include the answers in your report:

What is Kubernetes? Why do we need it? (5 points)
Please explain the concepts of Deployment, Service and Pod. (5 points)
Why k8s use pod to manipulate the application instead of the container. (5 points)
What is Replica Set in Kubernetes? (5 points)
Why can the client successfully communicate through port 30080 when the server is listening on port 8888? (10 points)

(Optional) Check if your container is running correctly on the minikube

1. Get the ip address of the minikube:

minikube ip

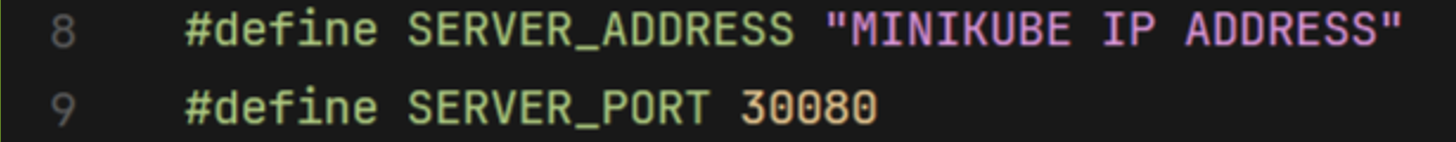

2. Enter the client folder, open and modify the `PLEASE ASSIGN` section in `socket_client.c`. (Replace with your actual student ID):

3. Tear down the deployed services and minikube cluster after you finished testing:

kubectl delete -f service.yaml
kubectl delete -f deployment.yaml
minikube stop

Assignment

Requirements

1. Report (100 points)

You have to make a report of pdf format named HW2_<your_student_id>.pdf, e.g. HW2_113062566.pdf.
The report should include the answers to the questions mentioned in the description of this lab.

Submission

Submit the report to eeclass.

Deadline

The deadline is set for November 26, 2024. Late submission is not allowed.

If you have any question, feel free to asking through eeclass or email.

Keyboard shortcuts

Virtualization Lab
